详解Silverlight与Access互操作的具体实现
创始人
2024-06-06 08:51:40
0
Silverlight与Access互操作是一个很基础的问题,主要涉及到数据库的操作。Access属于轻量级的数据库,应用起来还是比较方便的。51CTO编辑推荐《走向银光 —— 一步一步学Silverlight

在开发一些小型应用程序时,我们就需要使用一些小巧的轻量级的数据库,比如Access数据库。由于Visual Studio中并没有直接提供Silverlight与Access互操作的系列方法。于是本文就将为大家介绍如何让Silverlight使用Access作为后台数据库。

准备工作

1)建立起测试项目

细节详情请见强大的DataGrid组件[2]_数据交互之ADO.NET Entity Framework——Silverlight学习笔记[10]。

2)创建测试用数据库

如下图所示,创建一个名为Employees.mdb的Access数据库,建立数据表名称为Employee。将该数据库置于作为服务端的项目文件夹下的App_Data文件夹中,便于操作管理。

创建测试用数据库


建立数据模型

EmployeeModel.cs文件(放置在服务端项目文件夹下)

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. namespace datagridnaccessdb
  5. {
  6.     public class EmployeeModel
  7.     {
  8.         public int EmployeeID { get; set; }
  9.         public string EmployeeName { get; set; }
  10.         public int EmployeeAge { get; set; }
  11.     }

建立服务端Web Service★

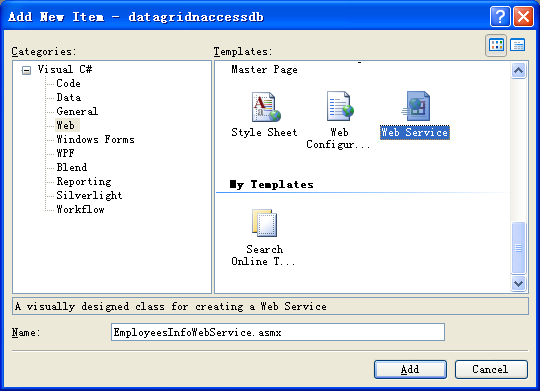

右击服务端项目文件夹,选择Add->New Item....,按下图所示建立一个名为EmployeesInfoWebService.asmx的Web Service,作为Silverlight与Access数据库互操作的桥梁。

建立服务端Web Service

创建完毕后,双击EmployeesInfoWebService.asmx打开该文件。将里面的内容修改如下:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Services;
  6. using System.Data.OleDb;//引入该命名空间为了操作Access数据库
  7. using System.Data;
  8. namespace datagridnaccessdb
  9. {
  10.     ///
  11.     /// Summary description for EmployeesInfoWebService
  12.     ///
  13.
  14.     [WebService(Namespace = "http://tempuri.org/")]
  15.     [WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
  16.     [System.ComponentModel.ToolboxItem(false)]
  17.     // To allow this Web Service to be called from script, using ASP.NET AJAX, uncomment the following line.
  18.     // [System.Web.Script.Services.ScriptService]
  19.     public class EmployeesInfoWebService : System.Web.Services.WebService
  20.     {
  21.         [WebMethod]//获取雇员信息
  22.         public List GetEmployeesInfo()
  23.         {
  24.             List returnedValue = new List();
  25.             OleDbCommand Cmd = new OleDbCommand();
  26.             SQLExcute("SELECT * FROM Employee", Cmd);
  27.             OleDbDataAdapter EmployeeAdapter = new OleDbDataAdapter();
  28.             EmployeeAdapter.SelectCommand = Cmd;
  29.             DataSet EmployeeDataSet = new DataSet();
  30.             EmployeeAdapter.Fill(EmployeeDataSet);
  31.             foreach (DataRow dr in EmployeeDataSet.Tables[0].Rows)
  32.             {
  33.                 EmployeeModel tmp = new EmployeeModel();
  34.                 tmp.EmployeeID = Convert.ToInt32(dr[0]);
  35.                 tmp.EmployeeName = Convert.ToString(dr[1]);
  36.                 tmp.EmployeeAge = Convert.ToInt32(dr[2]);
  37.                 returnedValue.Add(tmp);
  38.             }
  39.             return returnedValue;
  40.         }
  41.        [WebMethod] //添加雇员信息
  42.         public void Insert(List employee)
  43.         {
  44.             employee.ForEach( x =>
  45.            {
  46.                 string CmdText = "INSERT INTO Employee(EmployeeName,EmployeeAge) VALUES('"+x.EmployeeName+"',"+x.EmployeeAge.ToString()+")";
  47.                 SQLExcute(CmdText);
  48.             });
  49.         }
  50.         [WebMethod] //更新雇员信息
  51.        public void Update(List employee)
  52.         {
  53.            employee.ForEach(x =>
  54.             {
  55.                 string CmdText = "UPDATE Employee SET EmployeeName='"+x.EmployeeName+"',EmployeeAge="+x.EmployeeAge.ToString();
  56.                 CmdText += " WHERE EmployeeID="+x.EmployeeID.ToString();
  57.                 SQLExcute(CmdText);
  58.             });
  59.         }
  60.         [WebMethod] //删除雇员信息
  61.        public void Delete(List employee)
  62.         {
  63.             employee.ForEach(x =>
  64.             {
  65.                 string CmdText = "DELETE FROM Employee WHERE EmployeeID="+x.EmployeeID.ToString();
  66.                 SQLExcute(CmdText);
  67.             });
  68.         }
  69.        //执行SQL命令文本,重载1
  70.         private void SQLExcute(string SQLCmd)
  71.         {
  72.             string ConnectionString = "PROVIDER=Microsoft.Jet.OLEDB.4.0;DATA SOURCE=" + Server.MapPath(@"App_Data\Employees.mdb;");
  73.             OleDbConnection Conn = new OleDbConnection(ConnectionString);
  74.             Conn.Open();
  75.             OleDbCommand Cmd = new OleDbCommand();
  76.             Cmd.Connection = Conn;
  77.             Cmd.CommandTimeout = 15;
  78.             Cmd.CommandType = CommandType.Text;
  79.             Cmd.CommandText = SQLCmd;
  80.             Cmd.ExecuteNonQuery();
  81.             Conn.Close();
  82.         }
  83.         //执行SQL命令文本,重载2
  84.         private void SQLExcute(string SQLCmd,OleDbCommand Cmd)
  85.         {
  86.             string ConnectionString = "PROVIDER=Microsoft.Jet.OLEDB.4.0;DATA SOURCE=" + Server.MapPath(@"App_Data\Employees.mdb;");
  87.             OleDbConnection Conn = new OleDbConnection(ConnectionString);
  88.             Conn.Open();
  89.             Cmd.Connection = Conn;
  90.             Cmd.CommandTimeout = 15;
  91.             Cmd.CommandType = CommandType.Text;
  92.             Cmd.CommandText = SQLCmd;
  93.             Cmd.ExecuteNonQuery();
  94.         }
  95.     }

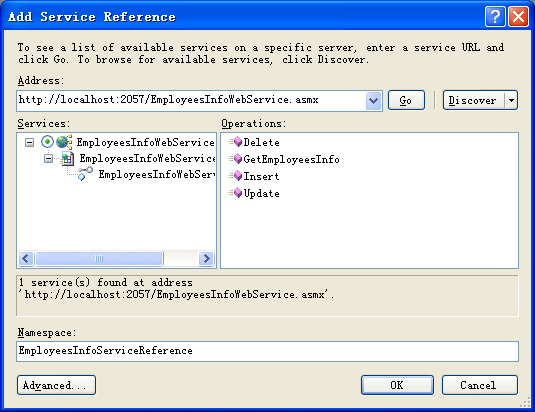

之后,在Silverlight客户端应用程序文件夹下,右击References文件夹,选择菜单选项Add Service Reference...。如下图所示,引入刚才我们创建的Web Service(别忘了按Discover按钮进行查找)。

选择菜单选项Add Service Reference

创建Silverlight客户端应用程序
  1. MainPage.xaml文件
  2.
  3. xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  4.    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  5. xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"     mc:Ignorable="d" xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data" xmlns:dataFormToolkit="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data.DataForm.Toolkit" x:Class="SilverlightClient.MainPage"
  6.
  7.     d:DesignWidth="320" d:DesignHeight="240">
  8.  x:Name="LayoutRoot" Width="320" Height="240" Background="White">
  9.   x:Name="dfEmployee" Margin="8,8,8,42"/>
  10.  x:Name="btnGetData" Height="30" Margin="143,0,100,8" VerticalAlignment="Bottom" Content="Get Data" Width="77"/>
  11.  x:Name="btnSaveAll" Height="30" Margin="0,0,8,8" VerticalAlignment="Bottom" Content="Save All" HorizontalAlignment="Right" Width="77"/>
  12.  x:Name="tbResult" Height="30" HorizontalAlignment="Left" Margin="8,0,0,8" VerticalAlignment="Bottom" Width="122" TextWrapping="Wrap" FontSize="16"/>
  13.
  14.
  15. MainPage.xaml.cs文件
  16. using System;
  17. using System.Collections.Generic;
  18. using System.Collections.ObjectModel;
  19. using System.Linq;
  20. using System.Net;
  21. using System.Windows;
  22. using System.Windows.Controls;
  23. using System.Windows.Documents;
  24. using System.Windows.Input;
  25. using System.Windows.Media;
  26. using System.Windows.Media.Animation;
  27. using System.Windows.Shapes;
  28. using System.Xml;
  29. using System.Xml.Linq;
  30. using System.Windows.Browser;
  31. using SilverlightClient.EmployeesInfoServiceReference;
  32. namespace SilverlightClient
  33. {
  34.     public partial class MainPage : UserControl
  35.     {
  36.         int originalNum;//记录初始时的Employee表中的数据总数
  37.         ObservableCollection deletedID = new ObservableCollection();//标记被删除的对象
  38.        public MainPage()
  39.         {
  40.             InitializeComponent();
  41.             this.Loaded += new RoutedEventHandler(MainPage_Loaded);
  42.             this.btnGetData.Click += new RoutedEventHandler(btnGetData_Click);
  43.             this.btnSaveAll.Click += new RoutedEventHandler(btnSaveAll_Click);
  44.             this.dfEmployee.DeletingItem += new EventHandler(dfEmployee_DeletingItem);
  45.         }
  46.         void dfEmployee_DeletingItem(object sender, System.ComponentModel.CancelEventArgs e)
  47.         {
  48.             deletedID.Add(dfEmployee.CurrentItem as EmployeeModel);//正在删除时,将被删除对象进行标记,以便传给服务端真正删除。
  49.         }
  50.         void btnSaveAll_Click(object sender, RoutedEventArgs e)
  51.         {
  52.             List updateValues = dfEmployee.ItemsSource.Cast().ToList();
  53.             ObservableCollection returnValues = new ObservableCollection();
  54.             if (updateValues.Count > originalNum)
  55.             {
  56.                 //添加数据
  57.                 for (int i = originalNum; i <= updateValues.Count - 1; i++)
  58.                 {
  59.                     returnValues.Add(updateValues.ToArray()[i]);
  60.                 }
  61.                 EmployeesInfoWebServiceSoapClient webClient = new EmployeesInfoWebServiceSoapClient();
  62.                 webClient.InsertCompleted += new EventHandler(webClient_InsertCompleted);
  63.                 webClient.InsertAsync(returnValues);
  64.                 //必须考虑数据集中既有添加又有更新的情况
  65.                 returnValues.Clear();
  66.                 updateValues.ForEach(x => returnValues.Add(x));
  67.                 webClient.UpdateCompleted += new EventHandler(webClient_UpdateCompleted);
  68.                 webClient.UpdateAsync(returnValues);
  69.             }
  70.             else if (updateValues.Count < originalNum)
  71.             {
  72.                 //删除数据
  73.                 EmployeesInfoWebServiceSoapClient webClient = new EmployeesInfoWebServiceSoapClient();
  74.                 webClient.DeleteCompleted += new EventHandler(webClient_DeleteCompleted);
  75.                 webClient.DeleteAsync(deletedID);
  76.             }
  77.             else
  78.             {
  79.                //更新数据
  80.                 updateValues.ForEach(x => returnValues.Add(x));
  81.                 EmployeesInfoWebServiceSoapClient webClient = new EmployeesInfoWebServiceSoapClient();
  82.                 webClient.UpdateCompleted += new EventHandler(webClient_UpdateCompleted);
  83.                 webClient.UpdateAsync(returnValues);
  84.            }
  85.         }
  86.         void webClient_UpdateCompleted(object sender, System.ComponentModel.AsyncCompletedEventArgs e)
  87.         {
  88.             tbResult.Text = "更新成功!";
  89.         }
  90.         void webClient_DeleteCompleted(object sender, System.ComponentModel.AsyncCompletedEventArgs e)
  91.         {
  92.             tbResult.Text = "删除成功!";
  93.         }
  94.         void webClient_InsertCompleted(object sender, System.ComponentModel.AsyncCompletedEventArgs e)
  95.         {
  96.             tbResult.Text = "添加成功!";
  97.         }
  98.         void btnGetData_Click(object sender, RoutedEventArgs e)
  99.         {
  100.             GetEmployees();
  101.         }
  102.         void MainPage_Loaded(object sender, RoutedEventArgs e)
  103.         {
  104.             GetEmployees();
  105.         }
  106.         void GetEmployees()
  107.         {
  108.             EmployeesInfoWebServiceSoapClient webClient = new EmployeesInfoWebServiceSoapClient();
  109.             webClient.GetEmployeesInfoCompleted +=
  110.             new EventHandler(webClient_GetEmployeesInfoCompleted);
  111.             webClient.GetEmployeesInfoAsync();
  112.         }
  113.         void webClient_GetEmployeesInfoCompleted(object sender, GetEmployeesInfoCompletedEventArgs e)
  114.         {
  115.             originalNum = e.Result.Count;//记录原始数据个数
  116.             dfEmployee.ItemsSource = e.Result;
  117.         }
  118.     }

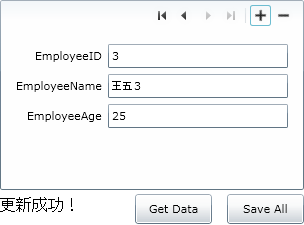

最终效果图

最终效果图



原文标题:Silverlight与Access数据库的互操作(CURD完全解析)

链接:http://www.cnblogs.com/Kinglee/archive/2009/09/05/1561021.html
