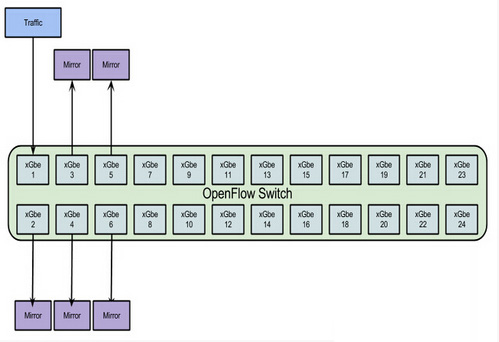

实验一: 一对多实验

将1个10G端口的流量镜像至5个端口的配置如下。同样配置方法可应用于更多的端口。

注：Pica8交换机同时支持传统的2-3层协议和OpenFlow协议，本实验中交换机均配置为OpenFlow模式;

首先我们创建一个新的Bridge br0，并将端口1-6添加到br0;

# Add Bridge br0 - for PCAP Replication - 1st Port
##############################
# te-1/1/1 is input te-1/1/2, te-1/1/3, te-1/1/4, te-1/1/5, te-1/1/6 are output
#-------------------------------------------------------------------------------------
$VSCTL add-br br0 -- set bridge br0 datapath_type=pica8 other-config=datapath-id=100
$VSCTL add-port br0 te-1/1/1 -- set interface te-1/1/1 type=pica8
$VSCTL add-port br0 te-1/1/2 -- set interface te-1/1/2 type=pica8
$VSCTL add-port br0 te-1/1/3 -- set interface te-1/1/3 type=pica8
$VSCTL add-port br0 te-1/1/4 -- set interface te-1/1/4 type=pica8
$VSCTL add-port br0 te-1/1/5 -- set interface te-1/1/5 type=pica8
$VSCTL add-port br0 te-1/1/6 -- set interface te-1/1/6 type=pica8

然后我们移除默认的流保证各端口按照新的指令工作;最后我们将镜像流量出端口的ingress流量全部丢弃;

# Remove Default Flow (not treating this as HUB!)
ovs-ofctl del-flows br0
# Add replication flow 1 -> 2,3,4,5,6
ovs-ofctl add-flow br0 in_port=1,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=output:2,3,4,5,6

最后我们将镜像流量出端口的ingress流量全部丢弃;

# Drop ingress traffic from mirror ports
ovs-ofctl add-flow br0 in_port=2,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=drop
ovs-ofctl add-flow br0 in_port=3,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=drop
ovs-ofctl add-flow br0 in_port=4,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=drop
ovs-ofctl add-flow br0 in_port=5,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=drop
ovs-ofctl add-flow br0 in_port=6,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=drop

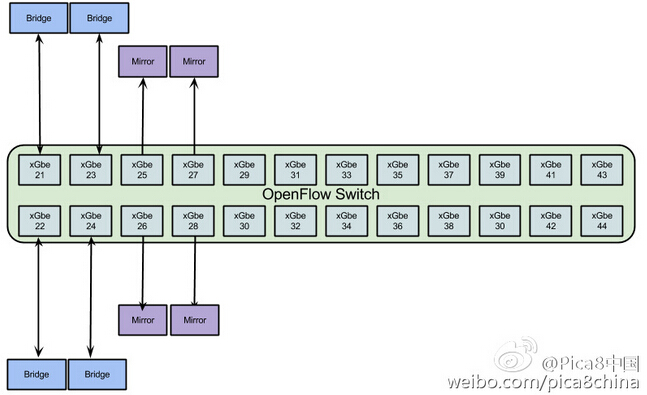

实验二：Tap Aggregation实验

在实验一的基础上我们将四个端口的流量bridge到一起，并且mirror至其他端口;

idge br20 - for TAP Span - 1st Port
#######################################################################################
# Bridged : te-1/1/21, te-1/1/22, te-1/1/23, te-1/1/24
# Output : te-1/1/25, te-1/1/26, te-1/1/27, te-1/1/28
#-------------------------------------------------------------------------------------
$VSCTL add-br br20 -- set bridge br20 datapath_type=pica8 other-config=datapath-id=120
$VSCTL add-port br20 te-1/1/21 -- set interface te-1/1/21 type=pica8
$VSCTL add-port br20 te-1/1/22 -- set interface te-1/1/22 type=pica8
$VSCTL add-port br20 te-1/1/23 -- set interface te-1/1/23 type=pica8
$VSCTL add-port br20 te-1/1/24 -- set interface te-1/1/24 type=pica8
$VSCTL add-port br20 te-1/1/25 -- set interface te-1/1/25 type=pica8
$VSCTL add-port br20 te-1/1/26 -- set interface te-1/1/26 type=pica8
$VSCTL add-port br20 te-1/1/27 -- set interface te-1/1/27 type=pica8
$VSCTL add-port br20 te-1/1/28 -- set interface te-1/1/28 type=pica8
# Remove Default Flow (not treating this as HUB!)
ovs-ofctl del-flows br20
# Add replication flow from each bridged port to each of the other ports in the group
ovs-ofctl add-flow br20 in_port=21,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=output:22,23,24,25,26,27,28
ovs-ofctl add-flow br20 in_port=22,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=output:21,23,24,25,26,27,28
ovs-ofctl add-flow br20 in_port=23,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=output:21,22,24,25,26,27,28
ovs-ofctl add-flow br20 in_port=24,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=output:21,22,23,25,26,27,28
# Drop ingress traffic from mirror ports
ovs-ofctl add-flow br20 in_port=25,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=drop
ovs-ofctl add-flow br20 in_port=26,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=drop
ovs-ofctl add-flow br20 in_port=27,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=drop
ovs-ofctl add-flow br20 in_port=28,dl_dst="*",dl_src="*",dl_type="*",dl_vlan_pcp="*",dl_vlan="*",actions=drop
